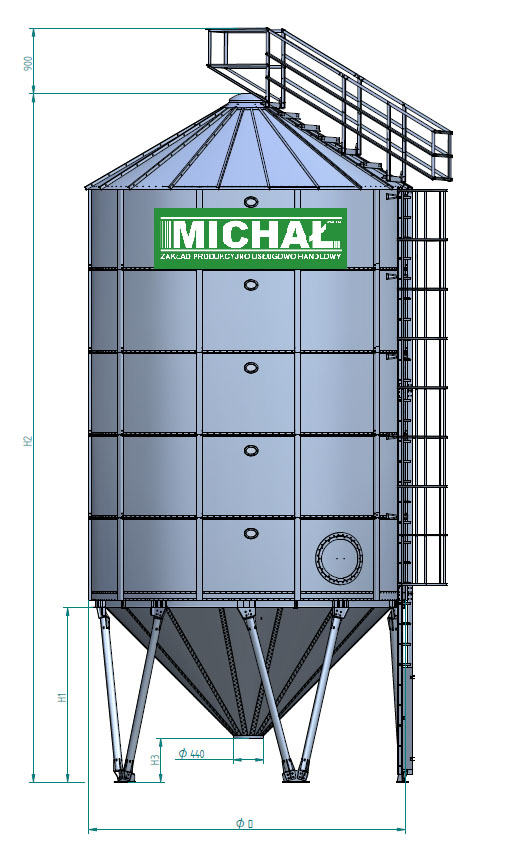

Model | ZLZ 1 | ZLZ 2 | ZLZ 3 | ZLZ 4 | ZLZ 5 | ZLZ 6 |
Capacity [m3] | 9,51 | 16,68 | 23,85 | 31,02 | 38,19 | 45,36 |
Feed amount (0,78t/m3)* [t] | 7,4 | 13 | 18,6 | 24,2 | 29,8 | 35,4 |
Diameter D [mm] | 2770 | 2770 | 2770 | 2770 | 2770 | 2770 |
Total height H2 [mm] | 3917 | 5107 | 6294 | 7489 | 8680 | 9869 |
Outlet height [mm] | 700 | 700 | 700 | 700 | 700 | 700 |
Outlet diameter [mm] | 440 | 440 | 440 | 440 | 440 | 440 |
Conical silos on legs Ø 3135 NEW
Model | ZLZ 6+E | ZLZ 7E | ZLZ 8E | ZLZ 9E |
Capacity [m3] | 40,8 | 50,0 | 59,2 | 68,4 |
Feed amount (0,78t/m3)[t] * | 31,8 | 39 | 46,2 | 53,4 |
Diameter D [mm] | 3135 | 3135 | 3135 | 3135 |
Total height H2 [mm] | 7282 | 9017 | 10206 | 11395 |
Outlet height [mm] | 700 | 700 | 700 | 700 |
Outlet diameter [mm] | 440 | 440 | 440 | 440 |
Conical silos on legs Ø 3135 – Angle of the cone 60°- NEW
Model | ZLZ 6/6E | ZLZ 7/6E | ZLZ 8/6E | ZLZ 9/6E |
Capacity [m3] | 34,6 | 43,8 | 53 | 62,2 |
Feed amount (0,78t/m3)[t] * | 27 | 34,1 | 41,3 | 48,5 |
Diameter D [mm] | 3135 | 3135 | 3135 | 3135 |
Total height H2 [mm] | 7673 | 8862 | 10051 | 11240 |
Outlet height [mm] | 700 | 700 | 700 | 700 |
Outlet diameter [mm] | 440 | 440 | 440 | 440 |
Conical silos on legs Ø 3692
Model | ZLZ 6+ | ZLZ 7 | ZLZ 8 | ZLZ 9 |
Capacity [m3] | 45,5 | 58,3 | 71,1 | 83,9 |
Feed amount (0,78t/m3)[t] * | 35 | 45 | 55 | 65 |
Diameter D [mm] | 3692 | 3692 | 3692 | 3692 |
Total height H2 [mm] | 6974 | 8194 | 9414 | 10634 |
Outlet height [mm] | 650 | 650 | 650 | 650 |
Outlet diameter [mm] | 440 | 440 | 440 | 440 |
Conical silos on legs Ø 3692 – Angle of the cone 60°
Model | ZLZ 6/6 | ZLZ 7/6 | ZLZ 8/6 | ZLZ 9/6 |
Capacity [m3] | 51,48 | 64,33 | 77,18 | 90,03 |
Feed amount (0,78t/m3)[t] * | 40,2 | 50,2 | 60,2 | 70,2 |
Diameter D [mm] | 3692 | 3692 | 3692 | 3692 |
Total height H2 [mm] | 8116 | 9336 | 10556 | 11776 |
Outlet height [mm] | 650 | 650 | 650 | 650 |
Outlet diameter [mm] | 440 | 440 | 440 | 440 |
Conical silos on legs Ø 4615
Model | ZLZ 11 | ZLZ 12 | ZLZ 13 | ZLZ 14 |
Capacity [m3] | 74,45 | 94,52 | 114,6 | 134,68 |
Feed amount (0,78t/m3)[t] * | 58,7 | 73,73 | 89,39 | 105,05 |
Diameter D [mm] | 4615 | 4615 | 4615 | 4615 |
Total height H2 [mm] | 7685 | 8905 | 10125 | 11345 |
Outlet height [mm] | 650 | 650 | 650 | 650 |
Outlet diameter [mm] | 440 | 440 | 440 | 440 |
Conical silos on legs Ø 5538
Model | ZLZ 16 | ZLZ 17 | ZLZ 18 | ZLZ 19 |
Capacity [m3] | 139,79 | 168,7 | 197,62 | 226,53 |
Feed amount (0,78t/m3)[t] * | 109,04 | 131,59 | 154,14 | 176,69 |
Diameter D [mm] | 5538 | 5538 | 5538 | 5538 |
Total height H2 [mm] | 9630 | 10850 | 12070 | 13290 |
Outlet height [mm] | 650 | 650 | 650 | 650 |
Outlet diameter [mm] | 440 | 440 | 440 | 440 |
Conical silos on legs Ø 6462
Model | ZLZ 21 | ZLZ 22 | ZLZ 23 | ZLZ 24 | ZLZ 25 | ZLZ 26 |
Capacity [m3] | 195,3 | 234,65 | 274 | 313,35 | 352,7 | 392,05 |
Feed amount (0,78t/m3)[t] * | 152,33 | 183,03 | 213,72 | 244,41 | 275,11 | 305,8 |
Diameter D [mm] | 6462 | 6462 | 6462 | 6462 | 6462 | 6462 |
Total height H2 [mm] | 10424 | 11644 | 12864 | 14084 | 15304 | 16524 |
Outlet height [mm] | 707 | 707 | 707 | 707 | 707 | 707 |
Outlet diameter [mm] | 440 | 440 | 440 | 440 | 440 | 440 |
Conical silos on legs Ø 7385
Model | ZLZ 28 | ZLZ 29 | ZLZ 30 | ZLZ 31 | ZLZ 32 | ZLZ 33 |
Capacity [m3] | 415,83 | 467,23 | 518,63 | 570,03 | 621,42 | 672,82 |
Feed amount (0,78t/m3)[t] * | 324,35 | 364,44 | 404,53 | 444,62 | 484,71 | 524,8 |
Diameter D [mm] | 7385 | 7385 | 7385 | 7385 | 7385 | 7385 |
Total height H2 [mm] | 14635 | 15845 | 17055 | 18265 | 19475 | 20685 |
Outlet height [mm] | 700 | 700 | 700 | 700 | 700 | 700 |
Outlet diameter [mm] | 440 | 440 | 440 | 440 | 440 | 440 |
